Chromatographic Changes After Routine HPLC Maintenance

Mechanisms, Diagnostics, Requalification, and Method Optimization

Overview: Why HPLC Maintenance Changes Chromatography

Routine HPLC maintenance is essential for restoring hardware reliability, minimizing leaks, preventing pump failure, and maintaining detector sensitivity. However, even well-executed preventive maintenance frequently results in measurable chromatographic changes.

These changes arise from small but technically meaningful shifts in:

• Flow accuracy and pump pulsation

• Gradient delay volume (GDV, dwell volume)

• Extra-column volume and dispersion

• Solvent composition and degassing efficiency

• Injector plug formation and timing

• Detector response characteristics

• Temperature control stability

For analytical laboratories operating under regulated conditions or tight system suitability requirements, understanding these effects is critical for:

• Preserving retention time stability

• Maintaining resolution and plate count

• Protecting quantitative accuracy

• Ensuring data integrity and audit defensibility

This technical guide explains the chromatographic consequences of routine HPLC maintenance and provides a structured post-maintenance qualification workflow.

Typical HPLC Maintenance Actions and Their Chromatographic Impacts

1. Pump Seal and Check Valve Replacement

Pump maintenance directly affects flow delivery and gradient accuracy.

Possible chromatographic effects:

• Slight changes in flow accuracy

• Reduced pulsation and baseline ripple

• Improved priming efficiency

• Reduced cavitation

• Subtle retention time shifts

If flow changes by even ±1–2%, uniform retention time shifts occur in isocratic methods.

2. Degasser Service or Replacement

Degassing efficiency strongly influences baseline stability and gradient performance.

Effects include:

• Reduced dissolved gas levels

• Fewer microbubbles in flow cell

• Improved pressure stability

• Enhanced gradient reproducibility

• Reduced baseline noise

Improved degassing can stabilize retention in gradient methods but may alter previous behavior if the original system had incomplete degassing.

3. Autosampler Syringe, Needle, or Rotor Seal Replacement

Injector maintenance often affects quantitative reproducibility.

Potential impacts:

• Modified injection plug geometry

• Changes in injection timing

• Altered sample dispersion

• Reduced or increased carryover

• Shifted injected mass fidelity

Observable symptoms:

• Peak area shifts

• Increased %RSD

• Minor retention shifts

• Carryover differences

4. Tubing Re-Plumbing and Fitting Replacement

Tubing internal diameter (ID) and length strongly affect extra-column volume.

Effects of changing tubing:

• Increased band broadening

• Lower plate count (N)

• Decreased resolution (Rs)

• Possible peak tailing due to dead volume

For example:

Switching from 0.13 mm ID to 0.25 mm ID tubing significantly increases dispersion, especially in UHPLC methods.

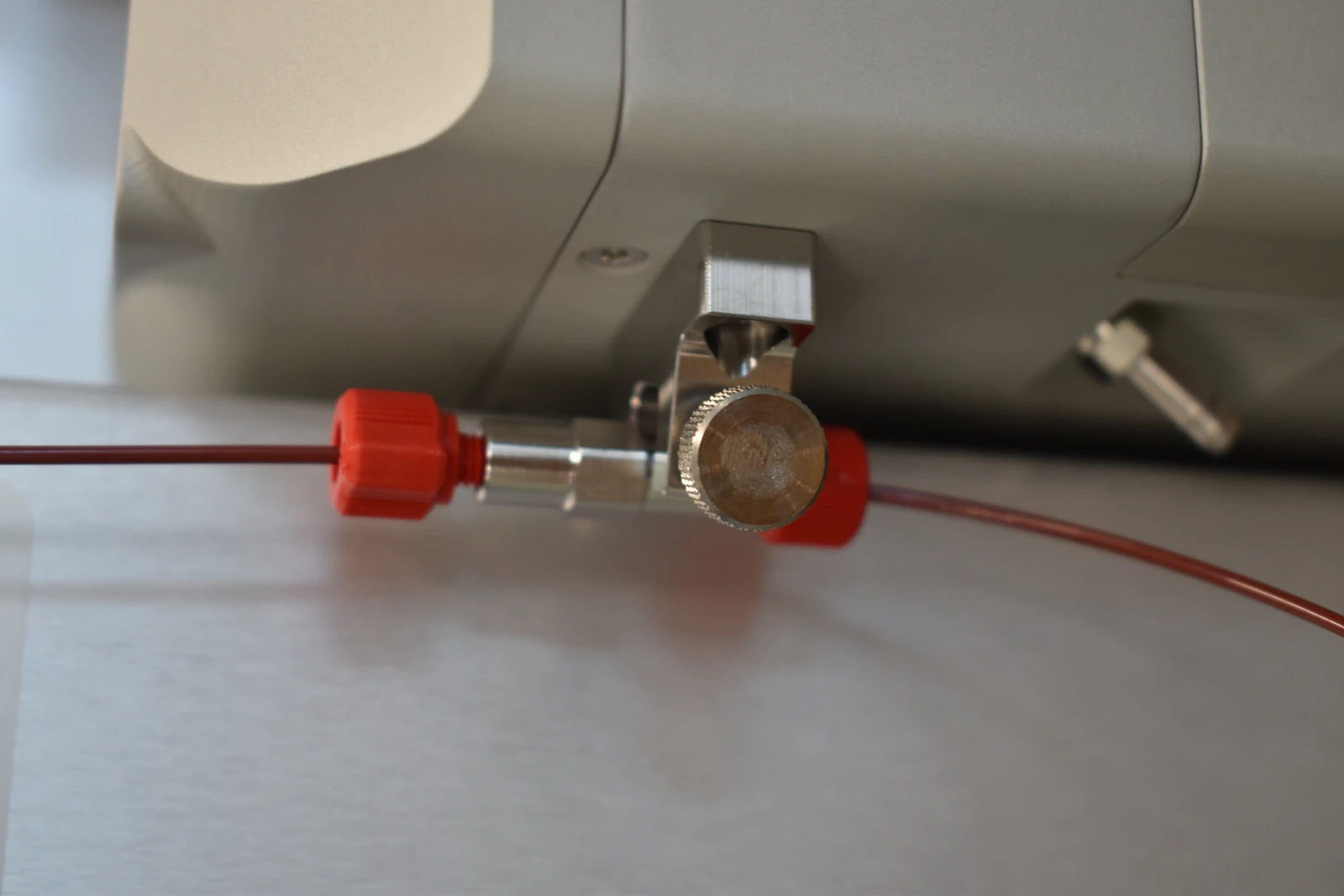

Improperly seated ferrules create dead volume, leading to:

• Peak tailing

• Peak fronting

• Loss of efficiency

5. Guard Column, Outlet Frit, or Column Reinstallation

Changes at the column interface alter both pressure and dispersion.

Possible observations:

• Increased backpressure

• Altered retention times

• Broader peaks

• Resolution changes

Connection geometry at the column inlet and outlet must minimize dead volume.

6. UV Detector Lamp Replacement or Flow Cell Cleaning

Detector maintenance influences signal quality.

After lamp replacement:

• Lower noise

• Higher sensitivity

• Improved photometric stability

• Different warm-up behavior

After flow cell cleaning:

• Reduced memory effects

• Altered dispersion if cell volume differs

• Possible baseline drift during initial equilibration

Allow sufficient warm-up (30–60 minutes) before qualification.

7. Column Oven Service

Temperature stability directly affects retention and selectivity.

Because retention depends on temperature-dependent partition equilibria:

Small setpoint deviations can produce measurable retention shifts.

Temperature changes influence:

• Solvent viscosity

• Diffusion coefficients

• Selectivity

• Backpressure

8. Software or Firmware Updates

Changes to:

• Compressibility compensation

• Solvent mapping

• Gradient mixing algorithms

can alter gradient timing and flow accuracy.

This frequently results in:

• Early vs. late peak shifts in gradient methods

• Modified gradient slopes

• Changed dwell volume behavior

Observable Chromatographic Changes and Root Cause Mapping

Uniform Retention Time Shift (Isocratic)

Likely causes:

• Flow rate deviation

• Oven temperature shift

• Mobile phase composition change

Gradient-Specific Retention Shifts

More pronounced differences between early and late eluting peaks indicate:

• Gradient delay volume change

• Mixer or degasser replacement

• Tubing reconfiguration

Peak Broadening or Reduced Efficiency

Likely contributors:

• Increased extra-column volume

• Larger ID tubing

• Long detector leads

• Added guard column

• Injector dispersion

Peak Tailing or Fronting

Possible causes:

• Mis-seated fittings

• Dead volume at connections

• Rotor seal leakage

• Contaminated column inlet frit

Baseline Noise or Drift

Often related to:

• Degassing performance

• Pump pulsation

• Lamp warm-up instability

• Microbubble formation

Pressure Changes

Higher or lower backpressure may result from:

• Tubing ID modification

• Guard column addition

• Temperature change

• Solvent viscosity differences

Critical Parameters to Verify After HPLC Maintenance

1. Flow Accuracy Verification

Gravimetric method:

Set flow to 1.000 mL/min.
Collect effluent for 10 minutes.
Weigh and calculate delivered volume.

Acceptable deviation typically within ±2% for analytical HPLC.

2. Capacity Factor (k')

k' = (tR – t0) / t0

Where:
tR = retention time
t0 = dead time

Systematic changes in k' indicate retention or flow differences.

3. Plate Number (N)

N ≈ 5.54 × (tR / W0.5)^2

Where:
W0.5 = peak width at half height

Reduced N indicates increased dispersion.

4. Resolution (Rs)

Rs ≈ 1.18 × (tR2 – tR1) / (W0.5,1 + W0.5,2)

Monitor Rs against pre-maintenance benchmarks.

5. RSD Criteria (Typical System Suitability)

Retention time RSD ≤ 0.5–1.0%
Peak area RSD ≤ 1–2%
Tailing factor T ≤ 2.0
Backpressure variation ≤ 2–5%

Gradient Delay Volume (GDV) Assessment

GDV shifts are common after:

• Mixer replacement

• Tubing modification

• Degasser service

GDV calculation:

GDV = time to absorbance change × flow rate

Typical values:

Analytical HPLC: approximately 0.8–2.0 mL
UHPLC: approximately 0.2–0.5 mL

If GDV increases by 0.2 mL at 1.0 mL/min, gradient onset shifts by 0.2 minutes.

Method compensation may require adding an initial hold to the gradient program.

Extra-Column Volume and Band Broadening

Contributors include:

• Injector

• Tubing ID and length

• Unions

• Detector flow cell

• Guard columns

Minimize dispersion by:

• Using 0.13 mm ID tubing for detector connections

• Keeping tubing length ≤ 20–30 cm

• Using low-dead-volume fittings

• Proper ferrule seating

Extra-column dispersion disproportionately affects fast gradients and small particle columns.

Post-Maintenance Qualification Checklist

1. Purge and Prime

Purge solvent A for 10 minutes at 5 mL/min.
Purge solvent B for 10 minutes at 5 mL/min.
Prime lines until bubble-free.

2. Verify Pump Settings

Set compressibility correctly:

Water: 45–50 × 10^-6 per bar
Acetonitrile: 120–130 × 10^-6 per bar

Confirm solvent mapping.

3. Flow Calibration

Confirm gravimetric accuracy.

4. Injector Performance

Inject 10 replicates.
Confirm retention time RSD ≤ 0.5%.
Confirm area RSD within method limit.

Check blank after high standard for carryover.

5. Detector Stability

Warm-up 30–60 minutes.
Record baseline noise over 10 minutes.
Compare to historical baseline.

6. Column Re-Equilibration

Equilibrate ≥ 20 column volumes.
Confirm retention and pressure match historical values.

7. Documentation

Record:

• Parts replaced

• Tubing ID and length

• Flow settings

• GDV values

• System suitability results

Method Adjustment After Maintenance

Example: GDV Compensation

Original program:

0.00 min: 5% B
1.00 min: 5% B
10.00 min: 95% B

If GDV increases by 0.2 minutes:

Revised:

0.00 min: 5% B
1.20 min: 5% B
10.20 min: 95% B

Example: Extra-Column Volume Reduction

Replace 0.25 mm ID detector tubing with 0.13 mm ID.
Keep tubing length minimal.
Use properly seated low-volume fittings.

Data Integrity and Requalification

After routine HPLC maintenance:

• Perform full system suitability testing

• Compare results to historical control charts

• Investigate deviations starting with recently changed components

• Revalidate accuracy, precision, and linearity if required

Maintenance-induced chromatographic shifts are normal, but unverified shifts threaten data reliability.

Summary: Managing Chromatographic Changes After HPLC Maintenance

Routine HPLC maintenance frequently alters:

• Flow accuracy

• Gradient delay volume

• Extra-column dispersion

• Injector performance

• Detector stability

• Temperature control

These changes manifest as:

• Retention time shifts

• Peak broadening

• Resolution changes

• Baseline instability

• Carryover differences

Systematic post-maintenance qualification—covering flow calibration, GDV measurement, injector repeatability, detector stability, and system suitability—restores chromatographic reliability and protects quantitative accuracy.
