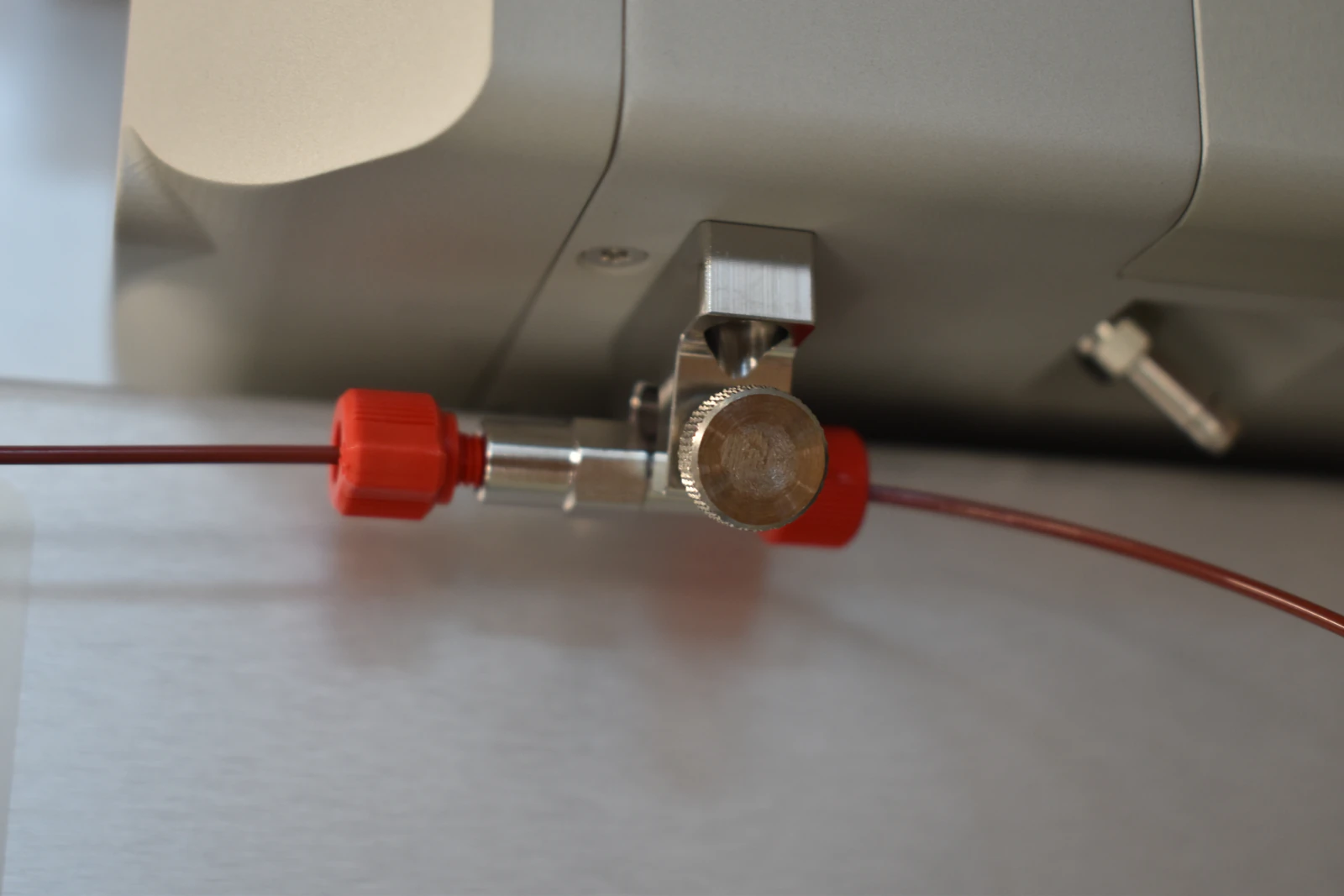

PEEK vs Stainless Steel Tubing in HPLC and UHPLC Flow Paths

Technical Troubleshooting, Performance Impacts, and Best-Practice Selection

Match the tubing material to your chemistry, pressure regime, and detector interface to avoid artifacts, leaks, and loss of chromatographic performance.

Purpose and Scope

Tubing material selection is a non-trivial design decision in HPLC and UHPLC systems. The choice between PEEK and stainless steel (SS, typically 316/316L) directly affects pressure stability, chemical compatibility, analyte recovery, extra-column band broadening, and detector response, particularly in LC-MS workflows.

This guide preserves and expands the original technical content while organizing it into a symptom-driven, mechanism-focused troubleshooting resource. Emphasis is placed on how tubing behavior varies across the flow path—pump → injector → column → detector/MS interface—and how improper material selection can quietly degrade data quality.

Core Differences Between PEEK and Stainless Steel—and Why They Matter

Mechanical Limits and Temperature Stability

Stainless Steel (SS)

• Designed for high-pressure UHPLC operation, commonly exceeding 1000 bar depending on OD/ID and construction.

• Exhibits excellent dimensional stability with negligible creep under sustained load.

• Tolerates temperatures well beyond typical LC oven conditions without loss of mechanical integrity.

PEEK

• Moderate pressure capability, strongly dependent on OD/ID, temperature, and solvent composition.

• Susceptible to creep and relaxation under sustained high pressure, which can alter ferrule sealing over time.

• Elevated temperatures can soften PEEK, increasing the risk of leaks or flow restriction at fittings.

Why this matters:
In high-pressure zones (pump head, mixer, injector inlet), even slight deformation or creep can cause pressure drift, leaks, or unstable flow, whereas downstream segments often benefit more from chemical inertness than mechanical strength.

Chemical Compatibility and Corrosion Behavior

Stainless Steel

• Broadly compatible with common LC solvents (water, methanol, acetonitrile, isopropanol).

• Vulnerable under specific conditions:
  High halide concentrations (pitting corrosion).
  Strong oxidizing or reducing agents.
  Prolonged exposure to very high pH.
  Hydrofluoric acid and certain chelating systems.

• Surface chemistry can be restored by periodic passivation, which rebuilds the protective oxide layer.

PEEK

• Chemically inert toward most aqueous and organic LC mobile phases.

• Sensitive to:
  Strong mineral acids.
  Many chlorinated solvents that cause swelling or embrittlement.
  Certain ethers and aggressive solvents at elevated temperature.

• Immune to metallic corrosion but susceptible to solvent-induced swelling, which alters internal geometry.

Why this matters:
Chemical incompatibility does not always cause immediate failure; it often manifests gradually as pressure instability, leaks, or baseline drift, making diagnosis non-obvious.

Surface Interactions and Analyte Adsorption

Stainless Steel

• Metal surfaces can adsorb or chelate analytes containing phosphate, carboxylate, catechol, or thiol groups.

• Particularly problematic for:
  Trace-level analysis
  Biopharmaceuticals
  Phosphorylated or metal-binding compounds

• Can introduce electrochemical effects near ESI sources, affecting ion formation.

PEEK

• Essentially metal-free, minimizing chelation and surface adsorption.

• Preferred for metal-sensitive analytes and low-level quantitation.

• Rarely, polymer–analyte or additive interactions may occur depending on formulation.

Why this matters:
Tubing-related adsorption typically presents as peak tailing, reduced recovery, or poor reproducibility, often misattributed to column chemistry.

Band Broadening, Internal Diameter, and Flow-Path Design

• Extra-column dispersion scales strongly with tubing ID and length, regardless of material.

• Stainless steel enables very small, pressure-stable IDs, making it ideal for UHPLC microbore connections.

• PEEK is commonly used where pressure is lower or where analyte inertness is prioritized.

• Hybrid options (e.g., PEEK-lined stainless or fused-silica-based assemblies) balance strength and inertness.

Best-practice principle:
Use the shortest possible tubing with the smallest practical ID that safely supports the flow rate and pressure.

Fittings, Ferrules, and Assembly Behavior

Stainless Steel Ferrules

• Permanently swage onto tubing, creating a robust seal.

• Not reusable once seated.

• Mis-swaging can score tubing, create dead volume, or cause chronic leaks.

PEEK Ferrules and Nuts

• Reusable and forgiving during method development.

• Subject to cold flow and relaxation, especially after thermal or pressure cycling.

• Require periodic inspection and retightening.

Assembly best practice:
Always use matched fittings and ferrules designed for the port geometry and tubing material. Misalignment is a common source of dead volume and pressure artifacts.

Symptom-Driven Troubleshooting

1. Peak Tailing, Recovery Loss, or Poor Reproducibility

Likely mechanisms

• Metal–analyte interactions in stainless steel tubing.

• Electrochemical effects near the MS interface.

Corrective actions

• Replace injector-to-column or column-to-detector segments with PEEK or PEEK-lined tubing.

• Introduce low-level mobile-phase modifiers to compete for metal sites.

• Use columns and connectors with inert hardware.

• Minimize metal immediately upstream of the ESI emitter while maintaining proper electrical grounding.

2. Unexplained Pressure Increase or Instability

With PEEK

• Solvent-induced swelling.

• Ferrule creep or deformation.

With Stainless Steel

• Particulate blockage.

• Internal corrosion or ferrule damage.

Corrective actions

• Verify solvent compatibility.

• Inspect for kinks, flattened sections, or deformed ferrules.

• Re-cut tubing ends square and reseat fittings.

• Flush SS lines thoroughly; passivate if corrosion is suspected.

3. Leaks After Thermal Cycling or Long Sequences

Most common with PEEK

• Creep and relaxation under pressure or heat.

Corrective actions

• Retighten fittings carefully without overtightening.

• Shift heated segments to stainless steel and keep PEEK at ambient temperature.

• Replace aged ferrules showing deformation.

4. Baseline Noise, Ghost Peaks, or Unexpected Adducts in LC-MS

Potential causes

• Electrochemical artifacts or corrosion products from SS.

• Rare extractables from stressed PEEK.

Corrective actions

• Passivate stainless steel before analytical use.

• Use PEEK or inert tubing close to the MS source.

• Precondition new tubing thoroughly with mobile phase.

5. Loss of Efficiency or Excess Band Broadening

Mechanisms

• Excessive tubing length.

• Oversized internal diameter.

• Poor fitting alignment creating dead volume.

Corrective actions

• Shorten critical connections.

• Use small-ID tubing appropriate for UHPLC.

• Employ zero-dead-volume unions and ensure correct seating depth.

Diagnostic Workflow

1. Map the full flow path and document tubing material, ID, and length.

2. Confirm operating pressure and temperature margins.

3. Cross-check solvent composition against PEEK compatibility.

4. Evaluate analyte chemistry for metal sensitivity.

5. Inspect and re-cut tubing ends; replace worn ferrules.

6. Run a probe compound to assess tailing and recovery.

7. Passivate or replace stainless steel segments if needed.

8. Re-validate with a short gradient and pressure profile.

Recommended Material Choices by Application

• High-pressure reversed-phase UHPLC: Stainless steel upstream; inert tubing downstream if needed.

• Biopharma and metal-sensitive analytes: PEEK or PEEK-lined tubing after the column.

• High-pH or aggressive eluents: Inert-lined or polymer-based flow paths.

• Chlorinated solvents or strong acids: Stainless steel preferred.

• LC-MS interfaces: PEEK near the source, with controlled grounding upstream.

Assembly and Maintenance Best Practices

• Produce clean, square tubing cuts.

• Seat tubing fully against port bottoms.

• Follow torque guidance, especially with PEEK.

• Passivate stainless steel prior to installing sensitive columns.

• Track baseline pressure over time to detect gradual degradation.

Summary

• Stainless steel tubing provides unmatched pressure and thermal robustness but can introduce adsorption, corrosion, and electrochemical artifacts.

• PEEK tubing minimizes metal interactions and is ideal near detectors and for sensitive analytes, but demands careful attention to solvent compatibility and mechanical limits.

• Optimal performance is achieved by strategically mixing materials, minimizing tubing length and ID, and maintaining high-quality fittings throughout the flow path.
