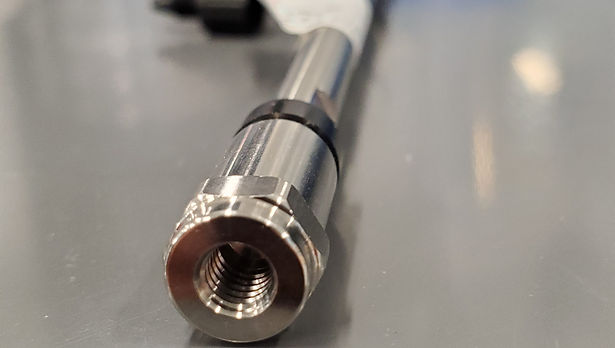

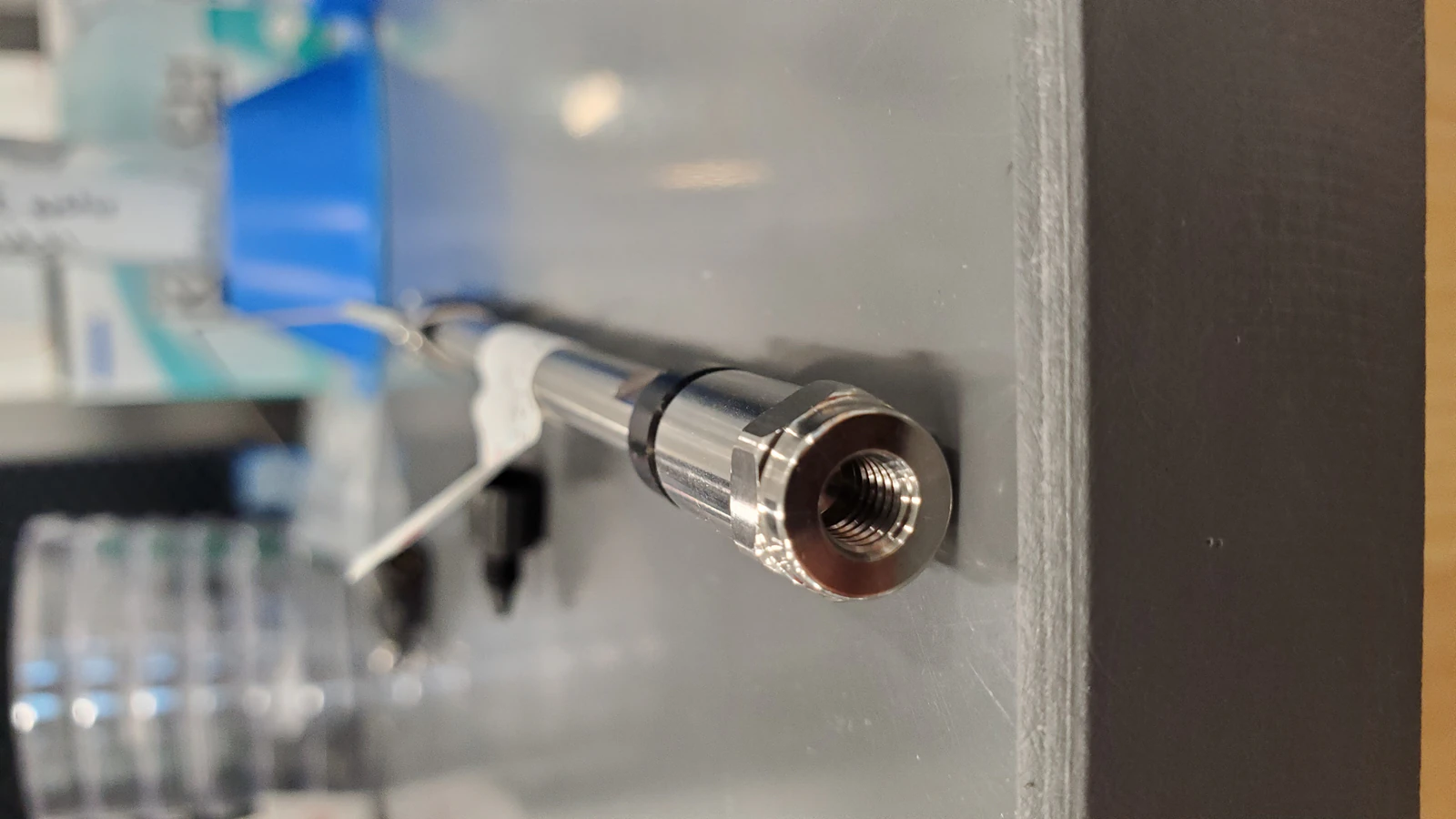

Reversed-Phase vs Normal-Phase HPLC Column Failure Modes: Mechanisms, Warning Signs, and a Practical Troubleshooting Workflow

Executive Overview

High-performance liquid chromatography (HPLC) columns fail through a combination of chemical degradation, physical damage, and operational stress. The dominant failure modes differ between:

• Reversed-phase (RP) HPLC columns: hydrophobic bonded phases (such as C18, C8, phenyl) on silica or hybrid supports, typically used with aqueous/organic mobile phases and buffers.

• Normal-phase (NP) HPLC columns: polar adsorbents (bare silica, amino, diol, cyano, alumina, or other polar-bonded phases) used with non-polar eluents plus controlled polar modifiers.

In RP, failure is often governed by wettability, bonded-phase stability, buffer compatibility, and matrix fouling. In NP, failure is largely driven by surface activity changes caused by water and strongly adsorbing polar compounds. Recognizing the failure signatures early and applying targeted remediation can extend column life, preserve selectivity, and protect method integrity.

1. Fast Recognition: Common Failure Signatures and What They Mean

Use these signatures to quickly narrow down root cause:

1.1 Increased Backpressure

Usually suggests:

• Inlet frit blockage

• Particulates in samples or mobile phase

• Precipitated buffers/salts (RP)

• Bed compression or fines formation

• Microbial film in aqueous systems (RP)

1.2 Loss of Retention in RP Under Highly Aqueous Conditions

Often indicates:

• Dewetting / phase collapse (hydrophobic phase no longer fully wetted)

1.3 Day-to-Day Retention Drift in NP

Often indicates:

• Variable water content in solvents

• Humidity exposure changing silica surface activity

• Surface poisoning by polar matrix components

1.4 Peak Tailing for Bases (Both RP and NP)

Common causes differ:

• NP: strong interaction with active silanol sites on silica

• RP: fouling, exposed active sites after degradation, or metal interactions depending on system

1.5 Peak Fronting or Split Peaks

Often indicates:

• Void formation at column inlet

• Channeling or bed disturbance

• Severe sample overload

• Strong injection solvent mismatch

1.6 Loss of Efficiency (Broader Peaks, Lower Plate Count)

Often indicates:

• Bed damage or voids

• Fouling or strongly retained residues

• Bonded-phase loss (RP)

• Irreversible adsorption (NP)

1.7 Ghost Peaks and Carryover

Often indicates:

• Adsorbed contaminants on column or guard

• Ion-pair reagent memory (RP)

• Strong adsorption of polar compounds (NP)

2. Reversed-Phase (RP) HPLC Column Failure Modes

2.1 Dewetting / Phase Collapse

Mechanism

Hydrophobic bonded phases (for example C18 on silica) can become dewetted under very high aqueous conditions (near 100% water). Pore interiors lose liquid contact, which reduces accessible surface area and retention.

Symptoms

• Abrupt or severe loss of retention in highly aqueous conditions

• Retention partially or fully returns when organic modifier is reintroduced

Prevention

• Maintain at least 5–10% organic modifier during operation or conditioning

• Use polar-embedded or AQ-stable phases for highly aqueous applications

• Equilibrate with mixed solvents before applying 100% aqueous gradients

Remediation

• Flush with strong organic (acetonitrile or methanol), optionally followed by isopropanol if compatible, then re-equilibrate to the intended mobile phase

• Avoid repeated cycling to 100% water unless the phase is specifically designed for fully aqueous operation

2.2 Bonded-Phase Hydrolysis and Silica Dissolution

Mechanism

• At low pH and elevated temperature, linkages to the bonded phase can hydrolyze, causing ligand loss.

• At high pH (above about 8 for typical silica), silica can dissolve, leading to irreversible performance degradation and potential void formation.

Symptoms

• Progressive reduction in retention and selectivity

• Increasing activity of residual sites (more tailing)

• Efficiency loss and possible particle/fines behavior

• In some cases, rising backpressure from generated fines

Prevention

• Stay within the manufacturer’s pH range (often around pH 2–8 for silica RP; hybrid supports may extend higher)

• Limit exposure time at extreme pH and elevated temperature

Remediation

If bonded-phase loss or silica dissolution is suspected, replacement is usually required. Chemical damage to the stationary phase is not “cleanable” back to original performance.

2.3 Buffer Precipitation and Salt Crystallization

Mechanism

Salts can precipitate when exposed to high organic content or when solvent composition changes rapidly (for example, buffered aqueous phase pushed into high acetonitrile). Precipitation can plug frits and pores.

Symptoms

• Rapid pressure increase

• Peak distortion

• Possible irreversible inlet blockage

Prevention

• Check buffer solubility in the strongest organic used in the method

• Flush salts with water before switching to high-organic storage or strong organic washes

Remediation

• Immediately flush with water to dissolve salts

• After salts are cleared, use 50–100% organic to remove hydrophobic contaminants

• If pressure remains elevated, attempt gentle reverse flushing only if permitted and within pressure limits

2.4 Ion-Pair Reagents and Memory Effects

Mechanism

Strongly adsorbing ion-pair reagents can persist in the column and plumbing, altering selectivity and creating ghost peaks.

Symptoms

• Long-lasting selectivity shifts

• Carryover despite standard wash steps

• Unusual baseline behavior in some methods

Prevention

• Use dedicated columns and dedicated system plumbing for ion-pair methods

Remediation

• Extended high-organic flushing followed by multiple cycles back to method conditions

• Some ion-pair residues are difficult to remove; replacement may be operationally faster than repeated recovery attempts

2.5 Fouling by Proteins, Lipids, and Complex Matrices

Mechanism

Biomacromolecules and lipids can adsorb or precipitate near the inlet and within pores, producing combined chemical and physical fouling.

Symptoms

• Rising backpressure

• Increased tailing

• Reduced efficiency

• Persistent carryover

Prevention

• Guard column usage

• Sample cleanup (filtration, precipitation, SPE)

• Controlled injection solvent strength and volume

Remediation

A practical wash sequence:

• Water → 50–100% acetonitrile (or methanol) → isopropanol (if compatible) → re-equilibrate

If fouling persists, replace the guard first; if unresolved, replace the analytical column.

2.6 Microbial Growth and Biofilm Formation

Mechanism

Aqueous eluents stored in columns can support microbial growth, producing films and particulates.

Symptoms

• Gradual pressure rise

• Baseline drift and instability

• Inconsistent retention/peak shape

Prevention

• Store RP columns in organic-rich solvent (commonly around 50% acetonitrile or methanol), capped securely

• Use fresh, filtered, degassed mobile phases

Remediation

• Flush with 20–50% organic

• Replace guard and inline filters if present

• Avoid unapproved biocides

3. Normal-Phase (NP) HPLC Column Failure Modes

3.1 Water Adsorption and Surface Activity Changes

Mechanism

Trace water competes strongly for polar adsorption sites on silica or polar-bonded phases. Ambient humidity and solvent dryness variability cause retention changes.

Symptoms

• Day-to-day retention drift

• Selectivity shifts

• Peak shape changes for polar analytes

Prevention

• Use fresh, low-water solvents

• Keep mobile phases sealed; minimize exposure to ambient humidity

• Consider a controlled, low-level protic modifier strategy when method allows

Remediation

Recondition with a standardized sequence such as:

• Hexane (or heptane) → hexane with a low percent polar modifier → hexane → equilibrate to method conditions

For moisture-sensitive methods, adopt a reproducible water-content protocol.

3.2 Irreversible Adsorption (Column Poisoning)

Mechanism

Strongly polar or reactive species irreversibly occupy active sites, causing persistent tailing and reduced recovery.

Symptoms

• Persistent tailing, especially for basic analytes

• Reduced recovery

• Ghost peaks

Prevention

• Use appropriate low-level modifiers (amines for basic analytes, acids for acidic analytes) when consistent with method goals

• Use guard columns and improved sample cleanup

Remediation

• Wash with stronger polar modifier sequences in the non-polar solvent system, then return to non-polar and re-equilibrate

• If performance does not recover, replace the guard and possibly the main column

3.3 Mechanical Disturbance and Void Formation

Mechanism

Pressure shocks, mishandling, or exceeding pressure limits disturbs packing.

Symptoms

• Split peaks

• Fronting

• Rapid efficiency loss

• Sudden pressure changes

Prevention

• Ramp flow and composition gradually

• Avoid pressure spikes

• Respect maximum pressure ratings

Remediation

• If permitted, reverse column and gently flush at reduced flow to dislodge inlet plugs

• If void formation is confirmed, replacement is typically required

3.4 Solvent Quality and Peroxide Effects

Mechanism

Peroxide-containing solvents (for example aged THF) can chemically compromise stationary phases and destabilize baselines.

Symptoms

• Baseline instability

• Selectivity changes

• Unexpected reactivity

Prevention

• Use verified solvent quality and appropriate grades

Remediation

• Replace solvent, recondition column

• Replace the column if damage persists

4. Cross-Cutting Failure Modes (RP and NP)

4.1 Frit Blockage

Causes:

• Particulates

• Sample debris

• Precipitated buffers (especially RP)

Diagnostics:

• Abrupt pressure rise, often shortly after injection

• Pressure not strongly dependent on solvent composition

Actions:

• Reverse flush at reduced flow with compatible solvent if permitted

• Install or replace inline filters and guard columns

• Improve sample and mobile phase filtration

4.2 Gas Entrapment and Degassing Issues

Causes:

• Inadequate degassing

• Cavitation

• Thermal changes

Symptoms:

• Baseline noise

• Pressure oscillation

• Retention variability

Actions:

• Degas and purge

• Stabilize temperature

• Avoid rapid changes in flow and composition

4.3 Column vs System Differentiation

Quick checks:

• Swap to a known-good column; if performance normalizes, the original column is the issue

• Run a system suitability mix and compare plates, tailing, and resolution

• Inspect injector, rotor seal, needle seat, inline filters, and guard devices

5. Diagnostic Workflow (Step-by-Step)

Step 1: Document the Symptom Pattern

Record:

• Backpressure change

• Retention drift

• Peak shape (tailing or fronting)

• Carryover/ghost peaks

• Baseline stability

Step 2: Validate Mobile Phase and Solvents

RP:

• Confirm pH and buffer compatibility with high organic
  NP:

• Confirm solvent dryness and humidity exposure

Step 3: Apply Targeted Cleaning

RP:

• Water → 50–100% organic (acetonitrile or methanol) → isopropanol (if compatible) → re-equilibrate

NP:

• Non-polar solvent → non-polar plus small percent polar modifier → non-polar → equilibrate to method

Step 4: Inspect and Replace Upstream Protection

• Replace inline filters and guard column (often the fastest fix)

• Verify fittings and dead volume

Step 5: Re-test with Suitability Mix

Compare:

• Plate count

• Tailing/asymmetry

• Resolution

• Retention windows

Step 6: Decide on Replacement

If efficiency and selectivity cannot be restored, retire the column to prevent cascading method failures.

6. Best Practices to Extend Column Life (RP and NP)

• Use guard columns and inline filters

• Ensure buffer compatibility with strongest organic used; flush salts with water before high organic or storage solvents

• Stay within vendor pH limits and minimize time at extremes

• Control temperature and avoid thermal shock

• Standardize equilibration volumes after large solvent changes (often 10–20 column volumes)

• For RP, avoid fully aqueous operation on hydrophobic phases unless rated; maintain 5–10% organic when needed

• For NP, enforce consistent solvent dryness and adopt a fixed modifier protocol

• Store properly:
  RP: around 50% acetonitrile or methanol, capped, away from heat/light
  NP: appropriate non-polar solvent, capped, minimal moisture exposure

• Maintain a column history log: pH, solvents, temperature, cleaning cycles, suitability metrics

Brief Summary

Reversed-phase columns most often fail due to dewetting, bonded-phase loss, buffer precipitation, matrix fouling, ion-pair memory effects, and microbial growth. Normal-phase columns fail primarily due to water-driven surface activity changes and irreversible adsorption by polar compounds, along with mechanical disturbances and solvent quality issues. Understanding the failure signatures and applying phase-appropriate remediation can restore performance when the cause is reversible; otherwise, timely replacement prevents cascading analytical problems.
