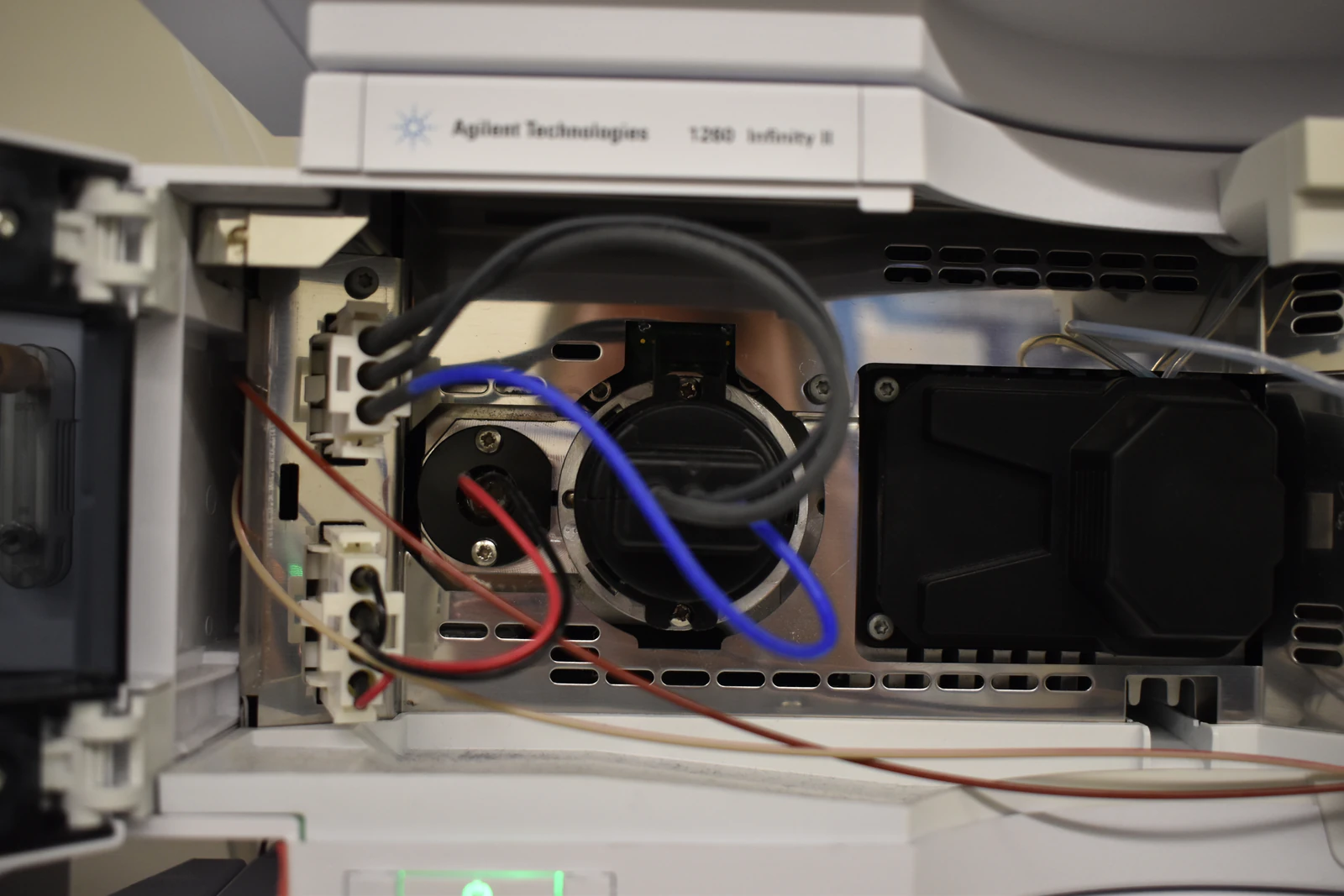

Detector Warm-Up Time and HPLC Data Reliability

System type: Liquid Chromatography (LC)

Chat with a Chemistry
Expert AI

Ask chemistry questions with confidence. ChemITrust AI Chat combines advanced AI with verified chemical knowledge to provide clear, dependable answers you can trust.

February 24, 2026

System type: Liquid Chromatography (LC)

Detector

Detector Warm-Up Time and HPLC Data Reliability

How Proper Detector Stabilization Ensures Accurate, Precise, and Defensible Analytical Chemistry Results

Introduction: Analytical Chemistry and Data Integrity

Analytical chemistry is the scientific discipline dedicated to generating valid, interpretable, and decision-ready data about chemical systems. In regulated and research laboratories alike, the analytical chemist must:

  • Understand the scientific problem and define measurement objectives.

  • Select appropriate techniques (e.g., liquid chromatography, spectroscopy) and detection strategies.

  • Design experiments that produce defensible measurements.

  • Verify accuracy, precision, robustness, and reproducibility before reporting results.

  • Interpret results while clearly communicating uncertainty and limitations.

  • Balance operational constraints (instrument availability, turnaround time, cost) without compromising reliability.

In High-Performance Liquid Chromatography (HPLC) and related spectroscopic detection systems, detector performance is a central determinant of data quality. One frequently underestimated but technically critical step is detector warm-up time. Inadequate warm-up directly compromises baseline stability, signal-to-noise ratio (S/N), limits of detection (LOD), limits of quantitation (LOQ), calibration linearity, and reproducibility.

Why Detector Warm-Up Time Matters in HPLC

HPLC detectors convert physicochemical interactions into electrical signals. Immediately after power-on or after temperature/setpoint adjustments, several subsystems are not yet at equilibrium:

1. Optical Instability

  • Deuterium lamps, tungsten-halogen lamps, and xenon flash lamps exhibit intensity drift during thermal stabilization.

  • Wavelength alignment and emission output fluctuate until thermal and electronic equilibrium is reached.

2. Thermal Instability

  • Detector flow cells require temperature stabilization.

  • Column ovens influence solvent viscosity and refractive index.

  • ELSD/CAD drift tubes require thermal equilibrium.

  • Mass spectrometry sources require stable desolvation temperatures.

Even minor temperature fluctuations can alter:

  • Refractive index

  • Solvent density

  • Viscosity

  • Optical alignment

3. Electronic Stabilization

Signal amplifiers and baseline offset circuits require time to stabilize gain and noise characteristics.

4. Nebulization and Evaporation Equilibrium (ELSD/CAD)

Droplet formation efficiency and evaporation conditions change until gas flow and thermal conditions stabilize.

5. Vacuum and Source Equilibration (LC–MS)

Ion current stability, vacuum pressure, and transmission efficiency require stabilization before reproducible mass accuracy and sensitivity can be achieved.

Consequences of Inadequate Detector Warm-Up on HPLC Data Reliability

Failing to allow adequate detector stabilization can produce systematic and random analytical errors:

Baseline Drift and Instability

  • Sloping baselines

  • Integration bias

  • Inaccurate peak area determination
    Gradient methods are particularly sensitive because solvent absorbance changes overlay lamp drift.

Increased Noise

Higher noise reduces signal-to-noise ratio:

[
S/N = \frac{\text{Peak Height}}{\text{Noise Amplitude}}
]

Increased noise inflates LOQ and worsens low-level quantitation.

Response Factor Drift

Time-dependent changes in detector sensitivity alter calibration slopes:

[
Response = mC + b
]

If detector gain drifts, the slope ( m ) changes, producing systematic bias.

Reduced Precision

Unstable baseline and sensitivity increase:

[
%RSD = \frac{\text{Standard Deviation}}{\text{Mean}} \times 100
]

Elevated %RSD compromises system suitability and regulatory compliance.

Spectral Inconsistency (UV/Vis-PDA, Fluorescence)

Premature spectral acquisition affects:

  • Peak purity assessment

  • Spectral library matching

  • Wavelength accuracy verification

Detector-Specific Effects

Refractive Index (RI)

  • Extremely temperature-sensitive.

  • Minute thermal gradients cause major baseline drift.

  • Longest stabilization requirement.

ELSD / CAD

  • Droplet formation and evaporation efficiency fluctuate.

  • Response factors vary until full thermal equilibrium.

LC–MS

  • Ion current and transmission efficiency drift.

  • Mass accuracy may deviate before vacuum stabilization.

Typical HPLC Detector Warm-Up Times

Warm-up times vary by instrument model and laboratory environment. Always follow manufacturer documentation and SOPs.

Detector TypeTypical Warm-Up TimeUV/Vis (VWD, PDA/DAD)20–60 minutesFluorescence15–30 minutesRefractive Index (RI)≥ 2 hoursELSD / CAD30–60 minutesLC–MS30–60 minutesConductivity / Electrochemical30–60 minutes

Important: System readiness requires stabilization of pump, column oven, autosampler, and detector—not just lamp warm-up.

HPLC System Equilibration and Readiness Criteria

Define objective acceptance criteria before sample analysis.

Thermal Stability

  • All module temperatures at setpoint.

  • RI and ELSD/CAD may require extended stabilization.

Flow and Pressure Stability

  • Stable backpressure.

  • Pump ripple within specification.

Baseline Acceptance Criteria

  • Baseline drift within method-defined limits (e.g., mAU/min threshold).

  • Noise (peak-to-peak or RMS) within method tolerance.

Sensitivity Verification

  • Control standard produces expected peak area and S/N ratio.

System Suitability Testing (SST)

Common criteria:

  • Resolution within acceptance

  • Tailing factor acceptable

  • Theoretical plates within range

  • %RSD of replicate standard injections ≤ 2% (method dependent)

  • Retention time reproducibility within tolerance

Practical SOP for Detector Warm-Up in HPLC

Step 1: Power-On Sequence

  1. Pump

  2. Column Oven

  3. Autosampler

  4. Detector

  5. MS Source (if applicable)

Enable thermostats immediately.

Step 2: Mobile Phase Preparation

  • Degas solvents.

  • Purge pump.

  • Check for leaks.

Step 3: Flow Stabilization

  • Begin at low flow (0.1–0.2 mL/min).

  • Step to method flow after stabilization.

  • Run blank gradients if applicable.

Step 4: Detector-Specific Stabilization

UV/Vis

  • Lamp On

  • Wait 20–60 minutes

  • Monitor baseline at analytical wavelength

Fluorescence

  • Lamp On

  • Set excitation/emission

  • Confirm signal stability

RI

  • Set cell temperature

  • Wait ≥2 hours

  • Perform Autozero only after baseline stabilizes

ELSD/CAD

  • Stabilize gas flow

  • Stabilize drift tube temperature

  • Confirm steady baseline

LC–MS

  • Confirm vacuum levels

  • Stabilize source temperature and gas flows

  • Perform tune/calibration after equilibrium

Step 5: Qualification

  • Run blank injections

  • Verify drift and noise meet SOP criteria

  • Inject 5–7 replicate system suitability standards

  • Calculate %RSD, resolution, retention time repeatability

  • Document readiness

Quantitative Impact of Proper Warm-Up

Proper detector warm-up directly improves:

Accuracy

Reduces systematic bias from drifting response factors.

Precision

Improves repeatability by minimizing baseline and gain instability.

LOD and LOQ

Lower noise and stable sensitivity ensure valid detection limits.

Method Robustness

Warm systems tolerate minor environmental fluctuations better.

Chromatography-Specific Considerations

  • Gradient baselines are highly sensitive to solvent absorbance changes.

  • Degassing reduces dissolved gas outgassing artifacts.

  • RI detectors require thermal shielding from drafts and HVAC cycling.

  • Solvent preheating improves baseline stability.

Spectroscopy-Specific Considerations

  • Lamp intensity and wavelength alignment stabilize after warm-up.

  • Wavelength accuracy verification should occur after stabilization.

  • Track lamp hours to prevent nonlinearity and excess noise.

Common Mistakes That Compromise HPLC Data

  • Injecting immediately after lamp activation.

  • Performing Autozero prematurely (especially RI).

  • Starting gradient during temperature ramp.

  • Ignoring environmental temperature fluctuations.

  • Skipping system suitability testing due to time pressure.

Best Practices for Ensuring HPLC Data Reliability

  • Define detector-specific warm-up durations in SOPs.

  • Use metric-based readiness criteria (baseline slope, noise, SST results).

  • Implement preventive maintenance.

  • Incorporate warm-up time into batch scheduling.

  • Document stabilization parameters before analysis.

Conclusion: Detector Warm-Up Is Essential for Reliable HPLC Results

Detector warm-up time is not a routine convenience—it is a critical control variable in analytical chemistry. Thermal, optical, and electronic equilibrium ensures:

  • Stable baseline

  • Reduced noise

  • Consistent sensitivity

  • Reliable calibration slopes

  • Accurate and precise quantitation

Inadequate warm-up degrades HPLC data reliability, inflates LOD/LOQ, increases %RSD, and compromises reproducibility—especially in gradient methods and temperature-sensitive detectors such as RI and ELSD/CAD.

Implement detector-specific SOPs, objective acceptance criteria, and mandatory system suitability testing to protect data integrity while balancing cost and throughput constraints.
